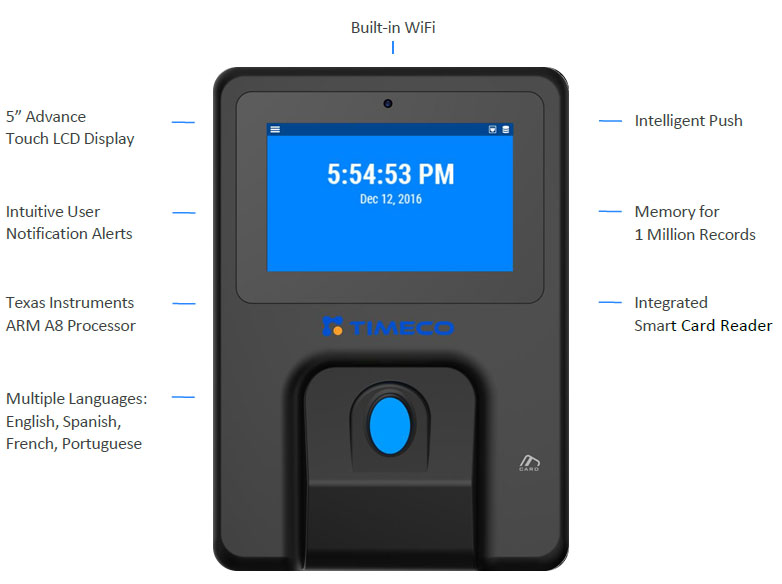

Features
World’s #1 FingerprintTechnology
Built with the premier fingerprint sensor in the world today; the Timeco TS700 guarantees verification every time in any environmental condition. Protect yourself against fake and spoof fingerprints with the Timeco TS700 which captures fingerprint data from the surface and subsurface of the finger
Real Time Communication
Designed with today’s connected world in mind (IoT “internet of things.” Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa.
Dual Frequency Card Reader
The Timeco TS700 offers dynamic dual frequency support of multiple credential technologies including iCLASS Seos, iClass SE, Standard iCLASS, HID Prox, Standard Prox EM, NFC, Felica MiFARE Classic and Mifare DESfire
Built in Wifi and Bluetooth 4.0
Expand communication capabilities with Wifi or Bluetooth.
5” Touch LCD Display
The 5” inch touchscreen, displays crisp, high resolution user notification screens.
Flexible APIs
The Timeco Cloud and TS700 APIs provide methods to manage, control, and monitor TS700 Smart Biometric & RFID devices.

SPECIFICATIONS
COMMUNICATION INTERFACE
10/100 Auto sensing ethernet with DHCP
Wi-Fi
1 Programmable Universal Relay RS232 (COM)
Barcode & Magnetic Stripe (Optional) Wiegand
SMART CARD TECHNOLOGY
Frequencies: 125kHz and 13.56 MHz
Supported credential types: HID Prox, iClass SE/SR/Seos/Elite
Mifare 1K, 4K, Classic, EM Prox Certified US Government FIPS 210 PIV II HID reader is an Optional Component
PROCESSOR & MEMORY
TI ARM A8 Cortex 1 Ghz
4GB Flash Memory, 512 RAM
DOOR ACCESS CONTROL
Universal relay connects directly to any 12V electronic door lock
DISPLAY
5 inches
Capacitive 5-Point touch
Color LCD
AUTHENTICATION METHODS
Fingerprint, Smart Card, Pin Number Optional: Barcode & Magnetic Stripe
WHAT’S INCLUDED IN THE BOX
One Timeco-TS700, Power Adapter, Timeco Instruction Guide, Wall Mount, Screws, Wall Anchors, Wall Mount Screw, Cover Plate
POWER
Power: DC 12 Volts
Current (Operational): 2A
BIOMETRICS
Fingerprint Technology:
Patented Multi spectral imaging
Image resolution: 500DPI
Large Scanning area: 18mm x 28mm
Identification Methods: 1:1 or 1:N
Fingerprint capacity: 1000 / (up to 10,000 optional)
Image Standards: ANSI378, ISO1974
Certified with Minex, PIV, and most industry biometric standards and interoperability
DIMENSIONS
Height: 11.25 inches
Width: 8.75 inches
Deep: 6.25 inches
